###All step and stl files are available on: https://www.printables.com/pl/model/185127-ar-cable-chain-link-opened * * *

Inspired by walttriano conversion for an Ender.

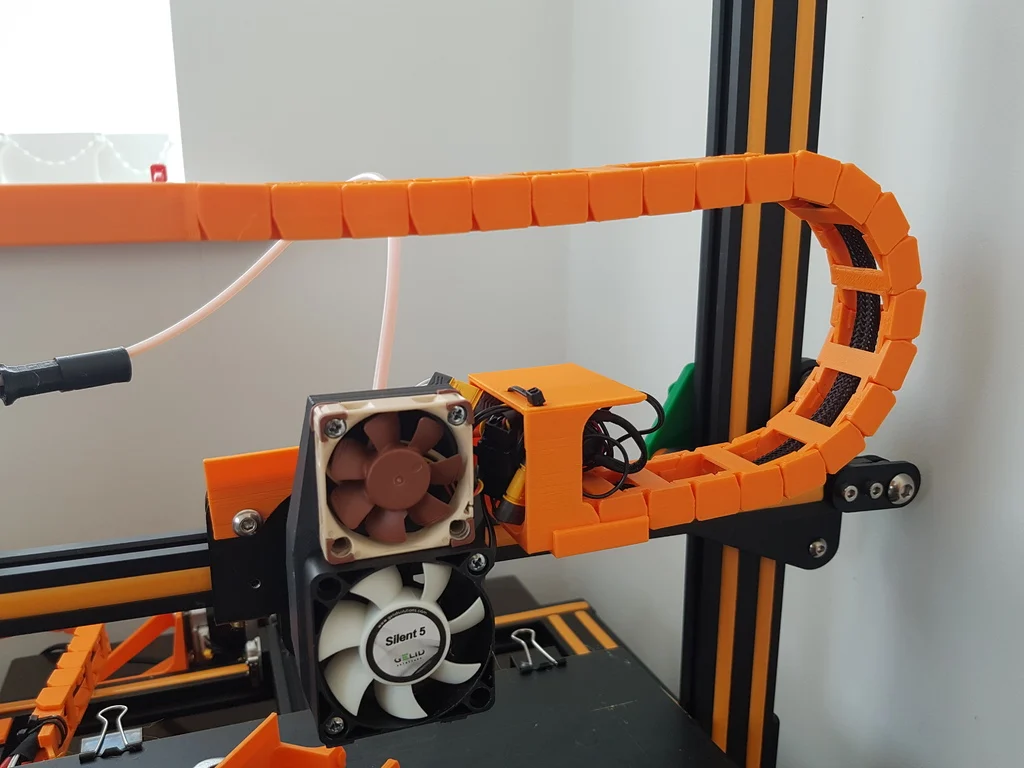

Designed for the width of the x-axis profile 20mm in my Ender 3. It has a latch that allows you to easily arrange and close the cables.

* * * #####Demo video: https://youtu.be/ofkW5O3-xkM * * * #####Status of this project:

- First release
v1.0 printed, and after testing

- 2022-02-27
update to v1.1 printed, more adjustments and less deflection of the straight chain.

- 2022-03-05
update latch to v1.1 - new fit and print position, v1.0 deleted.

- 2022-03-14
update to v1.2 - printed
Thanks to the Kaligma user and his suggestions and the Devazarus user, new changes have been made - improved linearity.
Additionally, I changed a few details that came to light while improving my printer.

* * * #####How to print optimally:

- Keep position from stl file to optimally print all parts.
- nozzle: 0.4mm or less
- layer height: 0.2mm
- top and bottom layers: 5
- no need support.

The 0.6mm nozzle does not work well in such precise prints - I checked.

Part printed in PETG and checked, latch fits very well.

* * * #####Disclaimer:

- I try to release the most optimized model possible, however remember - use this thing at your own risk.
- Feel free to share and any modification

and
If my free design is useful for you, please leave a comment, picture for my motivation on the project page, I am waiting for you! You can also buy me a coffee through paypal if you can and if you want.
https://www.paypal.com/paypalme/ArkadiuszRatajczyk

Thank you very much for every word and help in the development of my inventions. Thanks.

Peace and enjoy.

* * *
