Hello everyone!

Enjoy my GASB One! The most printed plane in the world !!!

If you like my model support me

Your help is really appreciated and allows me to develop new models that can be downloaded for free

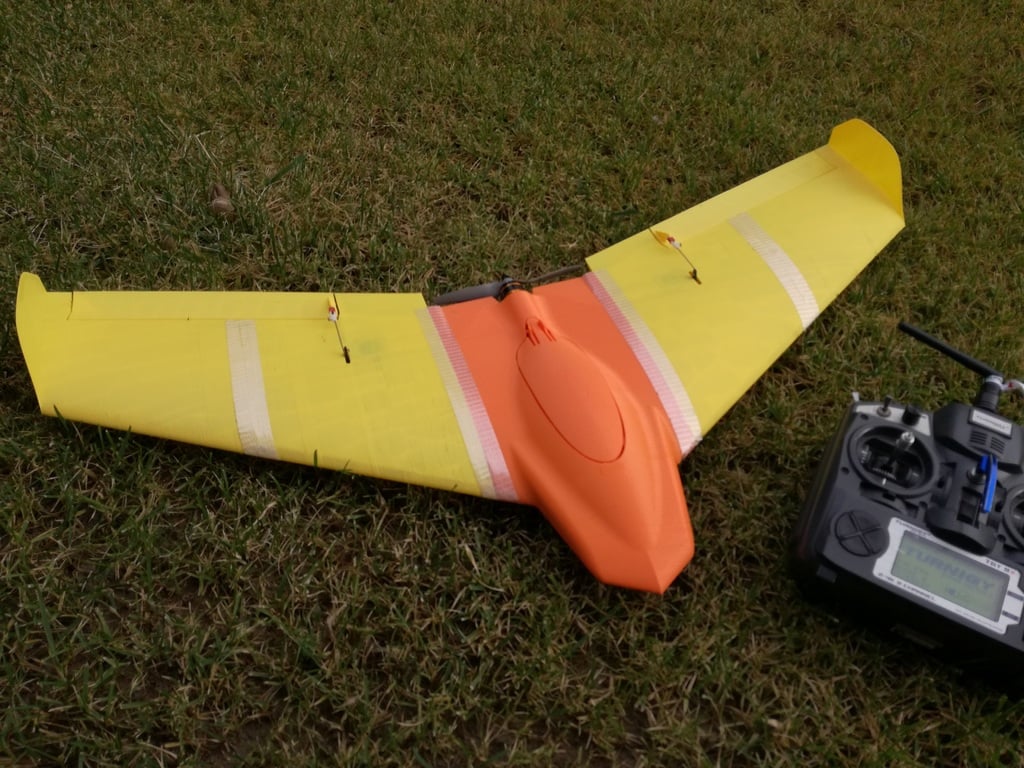

GASB One is the the easiest printable flying wing and, downloaded by over 67000 people, it is the most printed RC plane in the world !!!

The wingspan of this model is 80cm (31,5 inch). All the parts of the model are able to fit into a standard 3D printer (19x19x16cm work size). The key points of this design are: very few pieces to be printed (9), cheapness (about 420g of PLA), easy assembly/ disassembly/ repairng (no glue), fast to print and good flier !

History:

On July 31th 2016 over the field of GASB in Padulle the flying wing version 4 flew. The first four takeoff attempts was spent to find the CG. This is located 145mm rear to the junction leading edges of the wings. As soon found the CG, the plane took off twice by beautiful flights. The final weight of the version 4 was 334g with all (battery, motor, receiver etc,,,).
The version 5 was a little heavier (358g) due the increment of the thickness to 0.32mm instead 0.3mm, the infill 3% instead 2% and canopy fixed by magnets. The weight was increased but the motor is able to manage properly. Was downloaded by over 10K people.
The version 6 had apported several improvements, first off all the 9g servos and the internal structure into the wing (to print without infill)
The current version 7, due to the very great suggestions received from Marco67 is a very big step award. The main improvement is the fact that the model not require glue. This means that, in case of damage, you can disassembly the plane and print just the part demaged. Also, the wings back to be solid, without internal structures, this help the beginner and allow to choise the setup fovourite. The canopy not requires magnets. As some people found difficulty to balance the plane, can help the longer front part model.

Bill of material:

Motor BE 1806 2300kv - 10$
ESC 30A with BEC - 10$
2x 9g servos - 5$
Propeller 6x4 - 2$
PLA - 3$

Total: 30$

Here a couple of videos:

https://youtu.be/TYR0Yaah_4o and https://youtu.be/TPNiDbek_nQ

Dear friend, you can download free of charge the GASB One. I will be very happy for this especially if you publish the photo of your print. Today I kindly ask you to support me

If you like my model

You can support me by offering me a coffee

Your support will allow me to offer fully tested and continuously improved models dowloadable for free. If you would like to support me you will receive a personalized GASB One winglet by email with your name, you can also download manuals with bill of material and instruction to build your GASB One easily, add on for your GASB One, and many other exclusive special contents

Download also for free the GASB Two
picture of a GASB Two

... or the GASB Three
picture of a GASB Three
