Prints without support!
Assembles without hardware!
Wires without soldering!

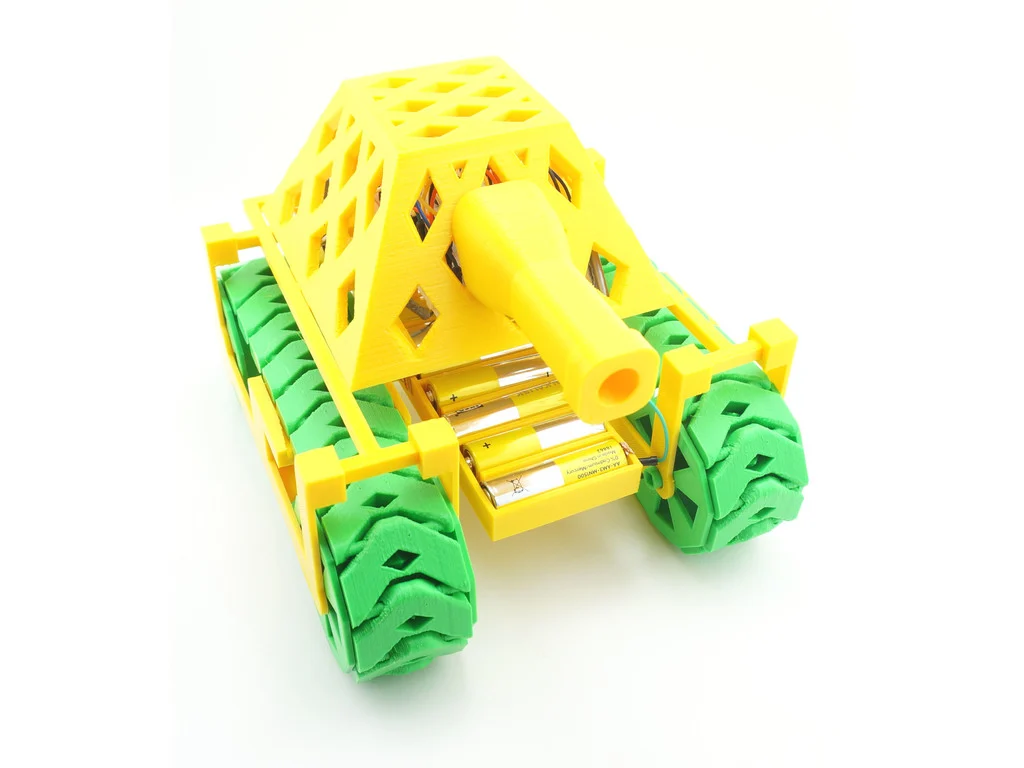

This tank does not require a single bolt or nut. You just print the parts, put them together, connect the motors and electronics, and it's ready for battle. It shows excellent off-road capabilities, and turns on a dime. Each of this tank's two tracks is printed in a single piece, thus eliminating the need for assembly hardware. The machine shown in the video below is powered with a Picaxe 20M2 microcontroller installed on a 300-hole mini-breadboard. There is also an H-bridge motor driver, an IR sensor, a couple of resistors and capacitors, and a whole bunch of jump cables. The entire set of electronic components used here can be bought on eBay for just a few dollars. The tank is operated with a regular Sony TV remote control. Parts:

Qty	Filename	Print Time (min.)	Total Print Time (min.)
2	tank_tracks.stl	204	408
1	tank_left_front_wheel.stl	86	86
1	tank_left_back_wheel.stl	77	77
1	tank_right_front_wheel.stl	86	86
1	tank_right_back_wheel.stl	77	77
2	tank_front_hubcap.stl	10	20
2	tank_back_hubcap.stl	11	22
1	tank_left_outer_rail.stl	51	51
1	tank_left_inner_rail.stl	41	41
1	tank_right_outer_rail.stl	51	51
1	tank_right_inner_rail.stl	41	41
1	tank_frame.stl	105	105
2	tank_motorholder.stl	40	80
2	tank_adapter.stl	10	20
1	tank_batteryholder.stl	91	91
1	tank_cover.stl	166	166
1	tank_cannon.stl	61	61

Total printed parts: 22 Total print time (approx.): 1,483 min. (24 hours and 43 min.) For detailed and illustrated assembly instructions, please visit http://www.otvinta.com/download10.html.

if you like our tank, you may also like our Rubik's Cube Solving Robot:

All our models including this one were designed with Blender 3D. We have created many video tutorials on designing gears and mechanisms in Blender. To see them, please visit our YouTube channel at https://www.youtube.com/c/otvinta3d.
